Cantilever Kit for 10m Openings, between 1050 - 1200kg

This Cantilever Kit for 10m Gate Openings is designed for the largest, heaviest sliding gates in demanding industrial and commercial environments. With a load capacity between 1050–1200kg, it provides reliable, smooth, trackless operation for very wide spans where ground tracks aren’t feasible.

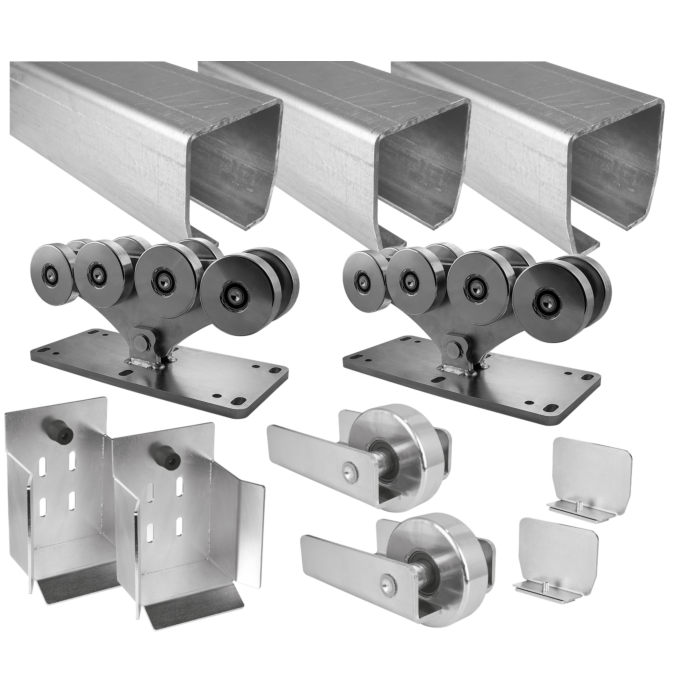

Kit Includes:

• Carriages:
  • 2 × SPEED L Eight-Wheeled Carriages (supports gates up to 13.5m)
• Gate Catch:
  • 2 × Large End Stops and Rest for Cantilever Gates
• Cantilever Beam:
  • 2 × STAGE LZ 6 Beams
  • 1 × STAGE LZ 2 Beam
    (combined to achieve the reach for 10m openings)
• Guide Wheels:
  • 2 × Large Guide Support Wheels
• End Stops:
  • 2 × Large Guide End Caps with Screws

Constructed with galvanised steel for superior durability and corrosion resistance, this kit offers the strength and stability needed for 10m wide cantilever gates. The combination of STAGE LZ beams provides the necessary reach and rigidity, while SPEED L carriages ensure smooth, reliable sliding under the heaviest loads.

This complete kit is the professional’s choice for large-scale, heavy-duty cantilever gate installations where performance and longevity are essential.
