Cantilever Kit for 12m Openings, between 500 - 1200kg

This Cantilever Kit for 12m Gate Openings is designed for extremely wide, heavy-duty sliding gates weighing between 500–1200kg. It is ideal for large industrial sites, commercial facilities, and secure premises that demand reliable, track-free sliding over long spans where ground tracks aren't practical.

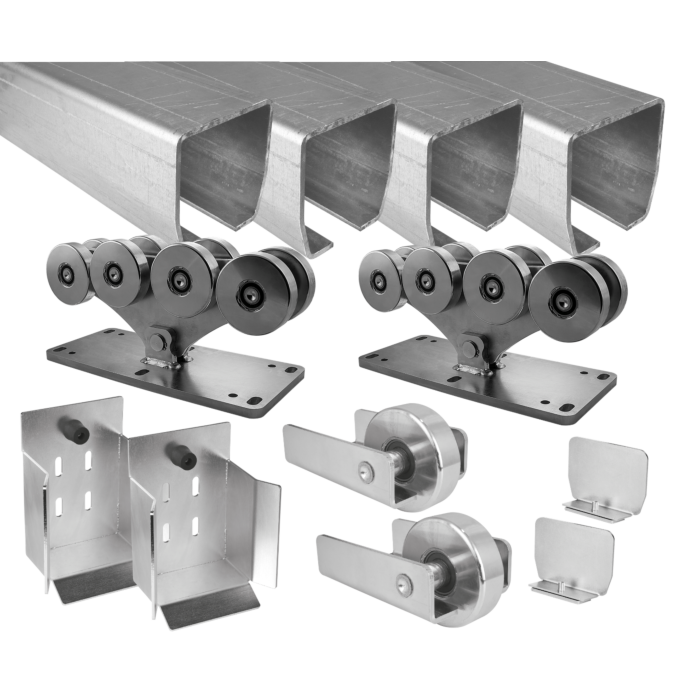

Kit Includes:

• Carriages:
  • 2 × SPEED L Eight-Wheeled Carriages (supports gates up to 13.5m)
• Gate Catch:
  • 2 × Large End Stops and Rest for Cantilever Gates
• Cantilever Beam:
  • 2 × STAGE LZ 6 Beams
  • 1 × STAGE LZ 3 Beam
  • 1 × STAGE LZ 2 Beam
    (combined to achieve the reach for 12m openings)
• Guide Wheels:
  • 2 × Large Guide Support Wheels
• End Stops:
  • 2 × Large Guide End Caps with Screws

Built from galvanised steel for excellent durability and corrosion resistance, this kit offers the structural strength and reach required for 12m wide cantilever gates. The combination of STAGE LZ beams ensures a rigid, stable sliding platform, while SPEED L carriages deliver smooth, consistent operation under heavy loads.

A complete, professional-grade solution trusted by installers for the largest, most demanding cantilever gate projects where robust performance and reliability are essential.
