Cantilever Kit for 7m Openings, between 1050 - 1200kg
Cantilever Gate Kit – 7m Opening | 1050–1200kg Load Capacity
-
Includes 2x STAGE LZ 6 beams, SPEED L 8-wheel carriages, large guide wheels and end stops.
-
Designed for extra-heavy gates with no ground track required.
-
Delivers smooth, stable sliding for industrial and commercial installations.
-
Galvanised steel construction ensures exceptional strength and corrosion resistance.
Benefit from some great savings on our products by becoming a trade customer
Apply For A Trade AccountThis Cantilever Kit for 7m Gate Openings is engineered for extremely heavy-duty gates weighing between 1050–1200kg. Designed for industrial and commercial sites, it offers smooth, track-free operation across wide spans, even under substantial load.

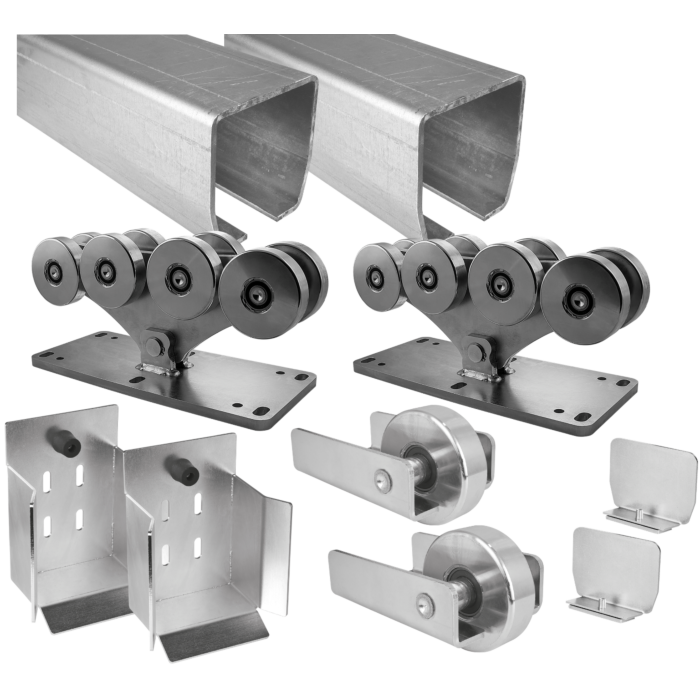

Kit Includes:
- Carriages:
- 2 × SPEED L Eight-Wheeled Carriages (supports gates up to 13.5m)
- Gate Catch:
- 2 × Large End Stops and Rest for Cantilever Gates
- Cantilever Beam:
- 2 × STAGE LZ 6 Beams (galvanised)
- Guide Wheels:
- 2 × Large Guide Support Wheels
- End Stops:
- 2 × Large Guide End Caps with Screws
Built with galvanised steel components for maximum durability and corrosion resistance, this kit provides the structural reach and strength needed for 7m wide openings. The SPEED L carriages ensure reliable, smooth sliding performance, even with very heavy gates.
This complete kit is a trusted choice for professional installers requiring robust, low-maintenance solutions for demanding cantilever gate installations.
