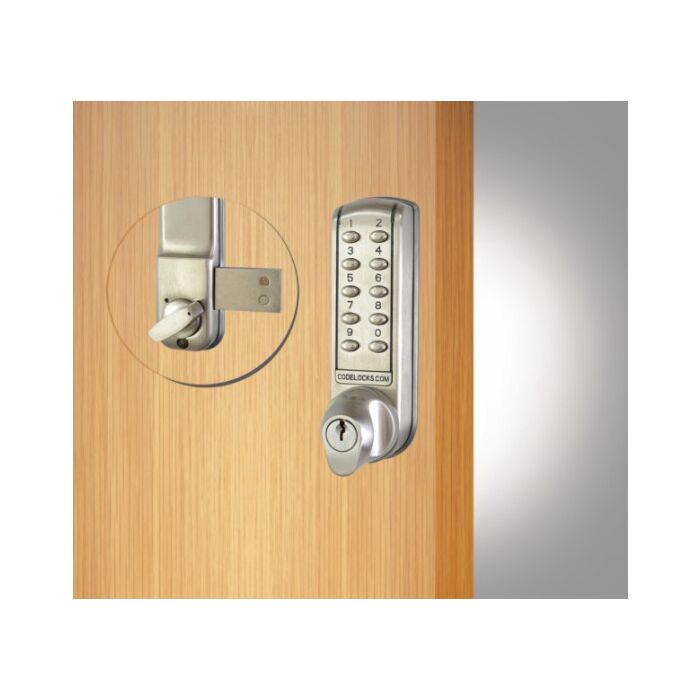

CL2200 Electronic Surface Mounted Deadbolt
Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2000 Surface Deadbolt electronic lock is ideal for a wide range of light duty access control applications. The CL2000 is fully programmable on the door via the keypad with a multiple range of functions. Bolt slides on inside of door, to lock or unlock. The lock will be opened once the correct code has been entered from the outisde but it will freely open with the inside knob handle at all times.
All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range. Locks can be keyed alike on request.
Benefit from some great savings on our products by becoming a trade customer
Apply For A Trade AccountFit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2000 Surface Deadbolt electronic lock is ideal for a wide range of light duty access control applications. The CL2000 is fully programmable on the door via the keypad with a multiple range of functions. Bolt slides on inside of door, to lock or unlock. The lock will be opened once the correct code has been entered from the outisde but it will freely open with the inside knob handle at all times.
All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range. Locks can be keyed alike on request.
Please note for the Anti-Bacterial Clean by Codelocks finish the lead time will be extended by between 7 - 10 working days depending on volume.
- Key override as standard
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Allows up to 10 one time User Codes
- Up to 80,000 operations from 2 x 1.5v AA batteries (supplied)
- Remote release connections
- Suitable for internal and external use
- Tamper time out and low battery warning
- Available in brushed steel
Buttons: | 2 x 5 + Programming |
Battery Override | PP3 Battery placed against external contacts |
Code Change Method | Keypad (On Door) |
Codes | Allows up to 10 one-time user codes, 4, 5 or 6 digits long. |
Door Thickness | 35mm - 60mm |
Finish | Brushed Steel |
Handed | Non-Handed |
Keypad | Individual Stainless Steel Buttons |
Latch Type | Surface Deadbolt |
Lock Material | Zinc Alloy |
Orientation | Vertical |
| Low Battery Warning | Red LED will flash on opening to indicate low battery. |
Spindle | Flat Bar Spindle, 8mm adapter supplied. |
Power | 2x AA |
Operations | Up to 80,000, operations per 2 x 1.5v AA Batteries |
Suitable for | Internal, External |
User Types | Code |
