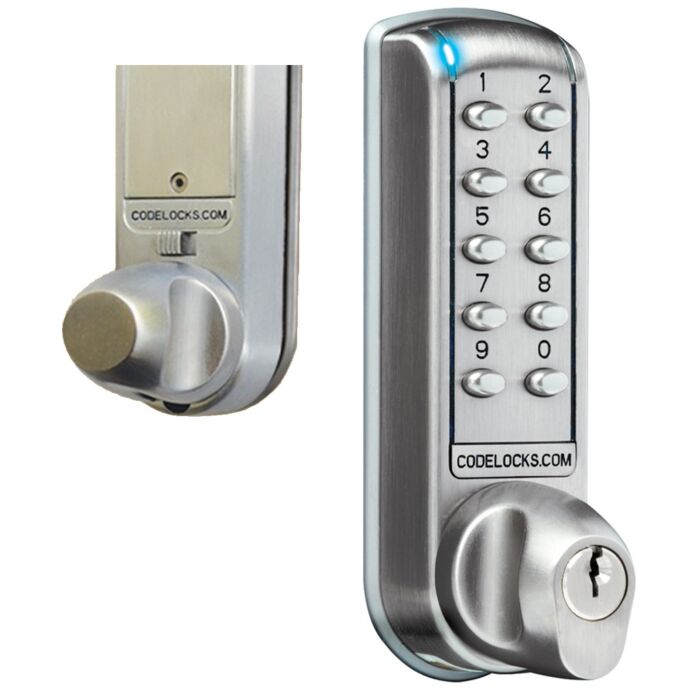

CL2255 Electronic Tubular Mortice Latch
Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks.
Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2255 electronic lock is ideal for a wide range of light duty access control applications. The CL2255 is fully programmable on the door via the keypad with a multiple range of functions. Light duty tubular mortice latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.
All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range. Locks can be keyed alike on request.
Please note for the Anti-Bacterial Clean by Codelocks finish the lead time will be extended by between 7 - 10 working days depending on volume.
- Key override as standard
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Allows up to 10 one time User Codes
- Up to 80,000 operations from 2 x 1.5v AA batteries (supplied)
- Remote release connections
- Suitable for internal and external use
- Tamper time out and low battery warning
- Available in brushed steel or polished brass
- Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors.
- Tested in accordance with BS EN 1634-1:2008
Buttons: | 2 x 5 + Programming |
Battery Override | PP3 Battery placed against external contacts |
Code Change Method | Keypad (On Door) |
Codes | Allows up to 10 - one time user codes, 4, 5 or 6 digits long. |
Door Thickness | 35mm - 60mm |
Finish | Brushed Steel, Polished Brass |
Handed | Non-Handed |
Keypad | Individual Stainless Steel Buttons |
Latch Type | Surface Deadbolt |
Lock Material | Zinc Alloy |
Orientation | Vertical |
Memory | Stores up to 80 user codes |
| Low Battery Warning | Red LED will flash on opening to indicate low battery. |
Spindle | Flat Bar Spindle, 8mm adapter supplied. |
Power | 2x AA |
Operations | Up to 80,000, operations per 2 x 1.5v AA Batteries |
Suitable for | Internal, External |
User Types | Code |
