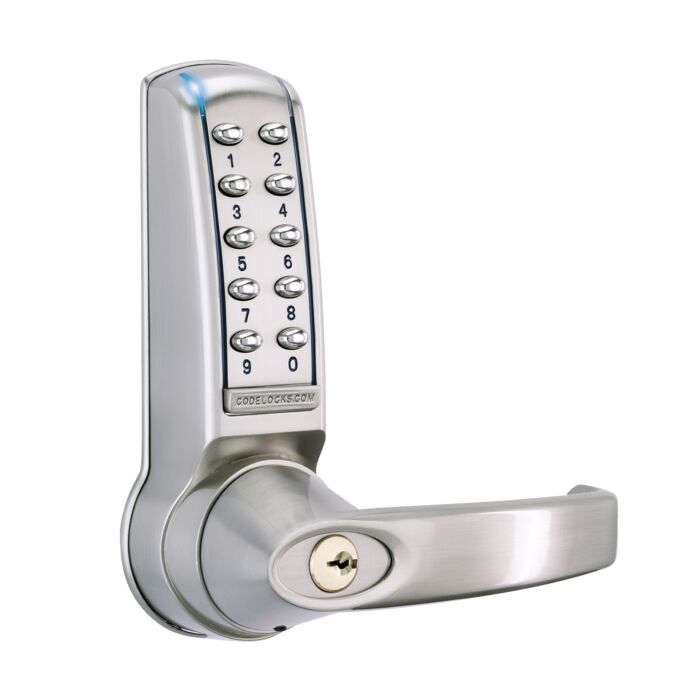

CL4010 Electronic Tubular Mortice Latch
Medium duty tubular mortice latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.
The CL4010 lock is of a stylish and contemporary design. Fully programmable on the door via the keypad with a multiple range of functions making them particularly suitable for use in health, educational, commercial and residential environments. Medium duty tubular mortice latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.
Please note for the Anti-Bacterial Clean by Codelocks finish the lead time will be extended by between 7 - 10 working days depending on volume.
- Key override as standard and front cylinder change
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Allows up to 10 one time User Codes
- Up to 200,000 operations from 4 x AA batteries
- Remote release connections
- Suitable for internal and external use
- Lever or knob handle options available
- Tamper time out and low battery warning
- Locked and unlocked LED indicator option
- Available in stainless steel or polished brass finish
- Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors.
- Tested in accordance with BS EN 1634-1:2008
Buttons: | 2 x 5 + Programming |
Code Change Method | Keypad (On Door) |
Codes | Allows up to 10 one-time user codes, 4, 5 or 6 digits long. |
Door Thickness | 35mm - 60mm |
Finish | Brushed Steel, Polished Brass |
Handed | Non-Handed |
Keypad | Individual Stainless Steel Buttons |
Latch Type | 60mm Mortice Latch |
Lock Material | Zinc Alloy |
Orientation | Vertical |
| Low Battery Warning | Red LED will flash on opening to indicate low battery. |
Spindle | Two Part 8mm spring loaded spindle. |
Power | 4x AA |
Operations | Up to 200,000, operations per 4 x AA Batteries |
Suitable for | Internal, External |
User Types | Code |
