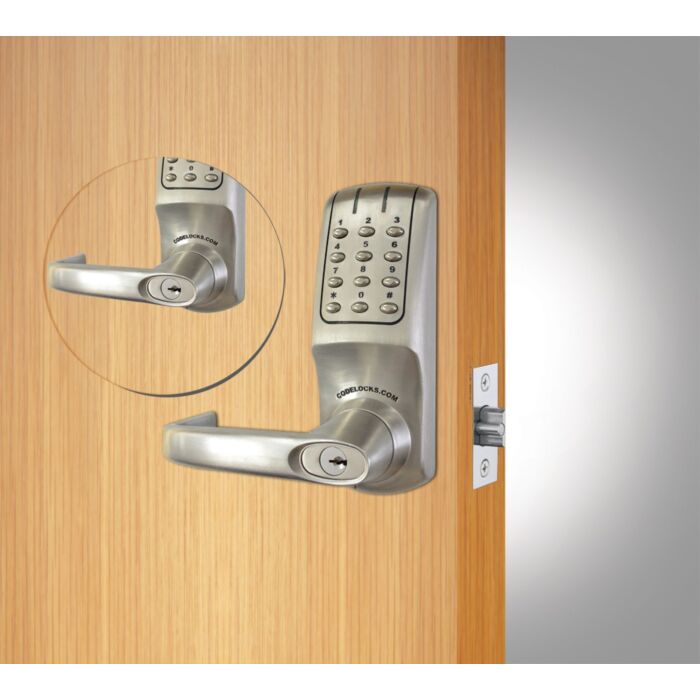

CL5010 Tubular Mortice Latch, Back to Back

The Codelocks CL5010 BS Back-to-Back is a heavy-duty standalone electronic lock offering coded access on both sides of the door. With dual keypad plates, this model is built for high-traffic environments like schools, hospitals, offices, and shared residential buildings, where secure, bidirectional access control is required.

It features a tubular mortice latch that locks automatically upon door closure, while access is granted via 4–6 digit user codes. You can activate Code Free mode for periods when free movement is needed, and the unit allows up to 10 one-time user codes—ideal for short-term access like deliveries or contractors.

Powered by 8 x AA batteries, the lock delivers up to 200,000 operations, with remote release compatibility, tamper protection, and LED indicators for low battery and lock status. It can also be fire-rated when installed with a Codelocks Fire Kit, making it suitable for doors requiring up to 60 minutes of fire protection.


Key Benefits

• Dual-sided coded access

• Automatic locking via tubular mortice latch

• Code Free mode for unrestricted periods

• Up to 200,000 operations on 8 x AA batteries

• LED status indicators for lock state and battery

• Remote release support and tamper timeout

• Fire-rated when used with Codelocks Fire Kit

Ideal Applications

• Healthcare facilities and hospitals

• Schools, universities, and training centers

• Commercial offices and staff areas

• Multi-tenant or managed residential properties

• Fire-rated internal or sheltered external doors

Technical Specifications

• ✅ Key override and front cylinder change

• ✅ Suitable for wooden doors 35mm–60mm thick

• ✅ Accepts user codes 4, 5, or 6 digits long

• ✅ Allows up to 10 one-time user codes

• ✅ Powered by 8 x AA batteries (supplied)

• ✅ Remote release connections included

• ✅ For internal and external use

• ✅ Tamper timeout and low battery warning

• ✅ LED indicator for locked/unlocked status

• ✅ Tested to ANSI Grade 2 A156.2 / A156.25

• ✅ UL/ULC 3-hour fire rating with US Fire Kit

• ✅ BS EN 1634-1 fire tested (with Fire Kit for 30/60 min doors)



Please note for the Anit-Bacterial Clean by Codelocks finish the lead time will be extended by between 7 - 10 working days depending on volume.
