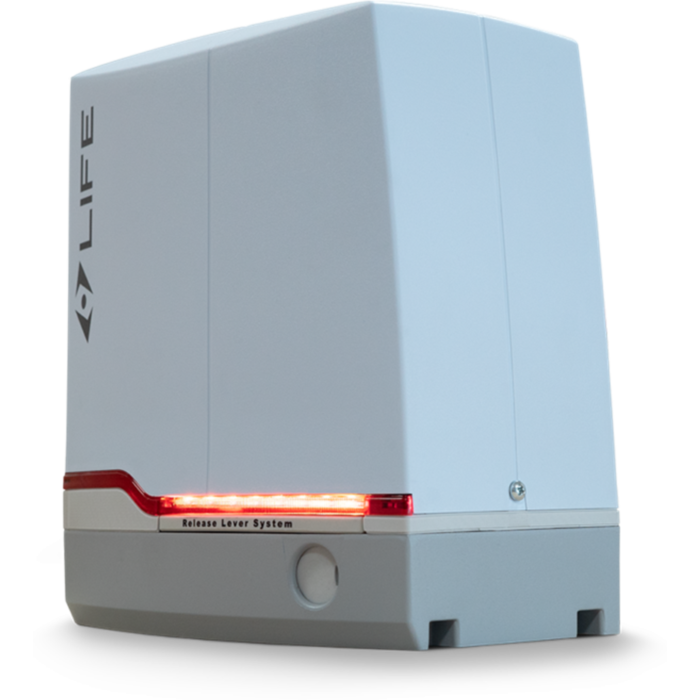

Deus 6 HP Sliding Gate Motor Setup (600kg)
DEUS is the new sliding gate motor designed for easy installation and enhanced performance. The automation system uses a doubel encoder to ensure maximum safety during operation, eliminating the need for conventional limit switches. This results in shorter installation times and greater reliability during use.
Boasting low power cosumption in standby mode and a new electronic board with display the DEUS range of sliding gate motors is highly efficient in terms of saving time for the installer and saving on energy costs for the end client.
Benefit from some great savings on our products by becoming a trade customer
Apply For A Trade AccountDEUS is the new sliding gate motor designed for easy installation and enhanced performance. The automation system uses a double encoder to ensure maximum safety during operation, eliminating the need for conventional limit switches. This results in shorter installation times and greater reliability during use.
Boasting low power cosumption in standby mode and a new electronic board with display the DEUS range of sliding gate motors is highly efficient in terms of saving time for the installer and saving on energy costs for the end client.
- Non-reversing electromechanical gearmotor for sliding gates.
- Available in three 24V versions, including a High-Speed model designed for safe, rapid opening and closing.
- Low power consumption in standby mode.
- Structure in light, resistant aluminium.
- Weather-resistant polyester powder-coated motor.
Each Kit includes:
1 x DEUS 4 gate motor
2 x MAXI Rolling code transmitters
2 x Photocells
1 x Control Unit
| DEUS 4 HP | DEUS 6 HP | DEUS 4 High Speed (HS) | |
| Max Gate leaf weight (Kg) | 400 | 600 | 400 |
| Motor (V) | 24V DC | 24V DC | 24V DC |
| Power Rating (W) | 120 | 140 | 120 |
| Thrust (N) | 300 | 400 | 300 |
| Lubrication (type) | Permananet Grease | Permananet Grease | Permananet Grease |
| Heat Protection (°C) | 140 | 140 | 140 |
| Operating temperature (°C Min/Max) | - 20 + 70 | - 20 + 70 | -20 + 70 |
| IP rate | 55 | 55 | 55 |
| Max speed (Meters per second) | 0.23 | 0.23 | 0.34 |
| Peak Torque (Nm) | 12 | 15 | 10 |
| Continuous duty (min.) | 20 | 20 | 20 |
| Duty cycle (%) | 80 | 80 | 80 |
| Pinion Height - h (mm) | 91 | 91 | 91 |
