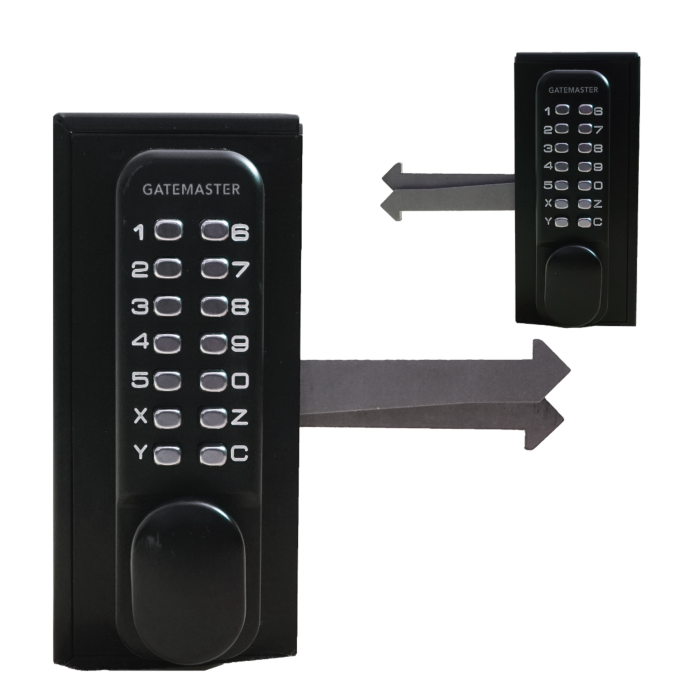

Gatemaster Double Sided Keypad Sliding Gate Code Lock
The Gatemaster Double-Sided Sliding Gate Code Lock is a strong and secure digital lock designed specifically for sliding gates. Featuring keypads on both sides, it provides convenient and controlled access while eliminating the need for keys.
Its auto-latching bolt securely engages into the keep when the gate is slid shut, and the lock will only release once the correct code is entered. Built with a one-piece die-cast casing and stainless steel components, this lock offers maximum durability against outdoor conditions.
Installation is quick and simple — just drill three holes in the gate frame and bolt the lock in place. With models available for 40mm, 50mm, and 60mm box section frames, the lock is adaptable to a wide range of sliding gate designs.
Key Features & Benefits:
Double-sided digital keypads – secure access from both sides of the gate
Auto-latching mechanism – latch bolt secures automatically when gate closes
Durable stainless steel construction – designed for outdoor use
One-piece die-cast lock case – maximum protection against elements
Includes secure keep – prevents access to latch bolt and improves appearance
Non-handed design – suits both left and right sliding gates
Slim 70mm lock case – fits neatly onto gate frame
Easy installation – bolt-on design with only three drilled holes required
Available in three sizes: SGLD40, SGLD50, SGLD60
The Sliding Gate Code Lock Double-Sided Keypad is the ideal security upgrade for domestic, commercial, or industrial sliding gates where controlled access and durability are essential.
Lock Type: Mechanical code lock – no power required
Case Width: Slim 70mm
Operation: Double-sided keypads – enter code and turn handle
Latch Bolt: Auto-latching into supplied keep
Construction: Stainless steel with one-piece die-cast case
Keep: Included, prevents access to latch bolt when gate is closed
Handing: Non-handed – suits left and right hand sliding gates
Finish: Stainless steel
Fitting the lock:
Drill 2 × 9mm holes at 140mm centres through the front stile of the gate for the fixing bolts.
Drill a 25mm hole for the latch arms, centrally between the two holes.
Slide the lock through the holes from the back of the box section, fit the stainless steel support plate, and secure with the 2 × M8 countersunk screws.
Fitting the keep:
Mark the strike point of the latch arms on the gate post and drill a 25mm receiving hole.
Drill 2 × 15mm holes at 70mm centres above and below the receiving hole.
Fit the L-shaped keep plate using the expanding fasteners. The keep prevents access to the latch bolt from the secure side.
Note: Ensure there is at least a 100mm gap behind the stile to fit the lock mechanism.
