Gate Restrainer for gates up too 260kg
3mm wire for gates up to 260kg (based on a maximum gate width of 2.5m)* operational length of 220mm.
Benefit from some great savings on our products by becoming a trade customer

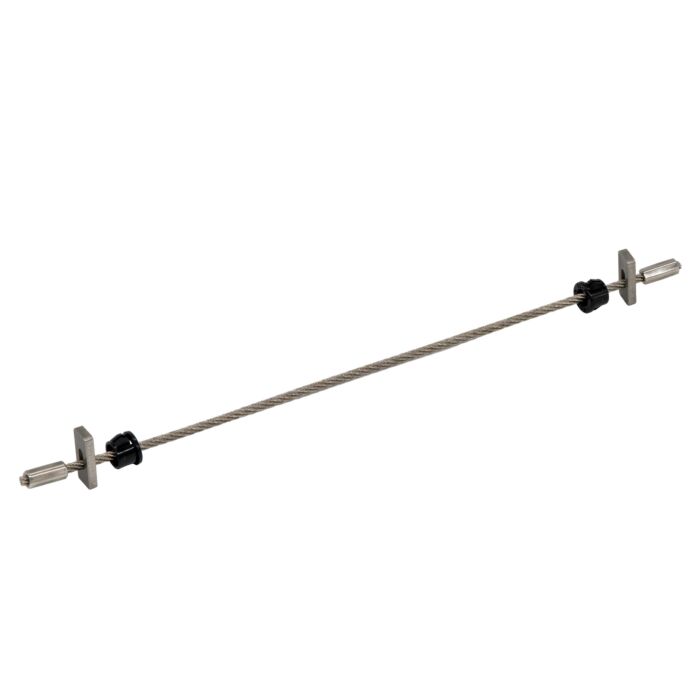

Apply For A Trade AccountThe Gatemaster GRS03 Gate Restrainer is a simple but essential safety device designed to prevent gates from falling if the top hinge fails. Strongly constructed with braided stainless steel wire rope and crimped end ferrules, this device provides a discreet yet effective layer of protection for swing gates in residential, commercial, or public settings.
Installation is quick and easy, just drill a 13mm hole in the gate and post, insert the end stops, and finish with the included plastic cover bushes for a neat and secure fit.
Key Features & Benefits:
Essential safety device for swing gates
Prevents accidents if the top hinge fails
Rated for gates up to 260kg (based on 2.5m max width)
Constructed from stainless steel wire with brass end fittings
Plastic bushes included for neat finish and wire protection
Easy to retrofit to existing gates – drill only 2 × 13mm holes
Compact and unobtrusive design
Product Code: GRS03
Maximum Gate Weight: Up to 260kg (2.5m wide max)
Operational Length: 220mm
Wire Thickness: 3mm stainless steel braided rope
Materials: Stainless steel + brass ferrules
Bushes: Plastic cover bushes included
Finish: Stainless steel
Drill a 13mm hole into the gate and a corresponding hole in the post, 30–50mm above or below the top hinge.
Slot the end stops into the holes.
Push the plastic bushes into the holes to protect the gate and allow the wire to slide freely.
Conditions of Use:
Check restrainer condition every 6 months and replace if damaged.
Device is designed to prevent sideways gate fall — not to take the full gate weight.
If the device becomes taut before the bottom of the gate rests on the ground, it is unsuitable for your configuration.
