Gate Restrainer for gates up too 500kg
4mm wire for up to 500kg (based on a maximum gate width of 2.5m)* operational length of 275mm.
Benefit from some great savings on our products by becoming a trade customer

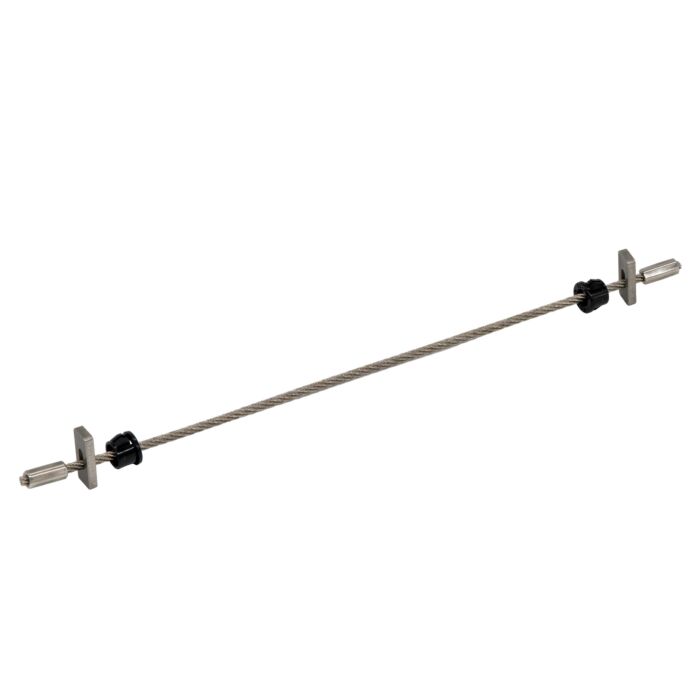

Apply For A Trade AccountThe Gatemaster GRS04 Gate Restrainer is a heavy-duty safety solution designed to prevent large and heavy gates from falling in the event of hinge failure. With its robust 4mm braided stainless steel wire and durable brass ferrules, this device is tested for use on gates up to 500kg — making it ideal for industrial, commercial, and agricultural applications.
Quick to install and unobtrusive once fitted, the restrainer ensures long-lasting protection while maintaining a neat finish with the supplied plastic cover bushes.
Key Features & Benefits:
Safety device for heavy-duty swing gates
Prevents serious accidents if the top hinge fails
Rated for gates up to 500kg (2.5m max width)
Strong 4mm stainless steel braided wire construction
Durable brass ferrules for secure fixing
Easy installation with only 2 × 13mm holes required
Includes plastic bushes for a neat, scratch-free finish
Discreet and low-maintenance
Product Code: GRS04
Maximum Gate Weight: Up to 500kg (2.5m wide max)
Operational Length: 275mm
Wire Thickness: 4mm stainless steel braided rope
Materials: Stainless steel + brass ferrules
Bushes: Plastic cover bushes included
Finish: Stainless steel
Installation
Drill a 13mm hole into the gate and a corresponding hole in the post, 30–50mm above or below the top hinge.
Slot the restrainer’s end stops into the holes.
Insert the plastic bushes to protect the gate and allow smooth wire movement.
Conditions of Use:
Inspect restrainer every 6 months and replace if worn or damaged.
Device prevents sideways fall, not full gate weight.
If the gate does not rest on the ground before the restrainer becomes taut, this device is unsuitable.
