Gatemaster Single Sided Sliding Code Gate Lock Right Handed
The Sliding Gate Lock is a high quality, heavy duty lock to secure any unit with a sliding gate. No power needed so no complicated wires, simply drill 3 holes and bolt on to the gate. Made from stainless steel and powder coated for maximum resistance against the elements. This product is provided with a keep which increases security as it prevents access to the latch bolt when the gate is closed and improves the overall appearance of the gate.
The Gatemaster Single-Sided Sliding Gate Code Lock (SGLDSR, Right Handed) is a heavy-duty digital lock purpose-built for sliding gates. With a keypad on the outside and a handle on the inside, it delivers convenient, keyless access while maintaining security and durability.
The auto-latching latch arms automatically engage into the included keep when the gate is closed, preventing tampering and improving the overall appearance of the gate. Built with stainless steel and a one-piece die-cast casing, this lock provides maximum corrosion resistance and durability for outdoor use.
Exclusive to the single-sided version is the hold-back function, allowing the latch to be held open via a button on the back of the lock – perfect for busy access points where the gate is frequently in use.
Key Features & Benefits:

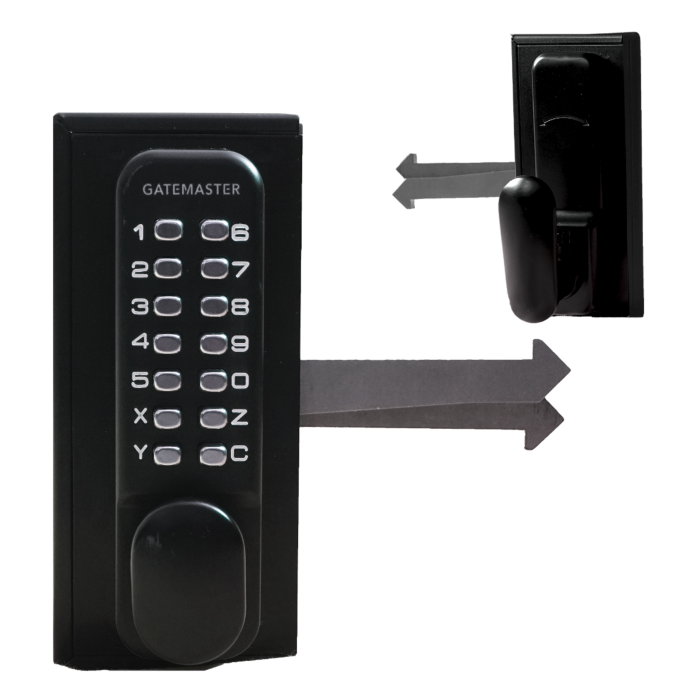

Single-sided digital keypad – keypad outside, handle inside
Auto-latching latch arms – latch automatically engages into the keep when gate closes
Hold-back function – rear button keeps latch open when required (single-sided only)
Stainless steel build – anti-corrosion and weather resistant
One-piece die-cast casing – maximum protection against elements
Slim 70mm lock case – adaptable for multiple gate styles
No power required – mechanical keypad, no wiring or batteries
Available in 3 frame sizes:
SGLDS40R – for 40 × 40 mm profiles
SGLDS50R – for 50 × 50 mm profiles
SGLDS60R – for 60 × 60 mm profiles
Handed design: Right-handed (gate sliding left-to-right when viewed from outside)
Built for strength, reliability, and ease of use, the Single-Sided Sliding Gate Code Lock (Right Handed) is the ideal choice for residential, commercial, or industrial sliding gates.
Operation:
Outside: Keypad entry
Inside: Handle release
Latch Type: Auto-latching latch arms into keep
Hold-Back Function: Yes – latch can be held open with rear button
Construction: Stainless steel with die-cast casing
Case Width: 70mm slim profile
Handing: Right-handed (gate slides left-to-right when viewed from outside)
Available Sizes / SKUs:
SGLDS40R – for 40 × 40 mm profiles
SGLDS50R – for 50 × 50 mm profiles
SGLDS60R – for 60 × 60 mm profiles
Included in Kit:
Lock mechanism (single-sided keypad + handle)
L-shaped keep with expanding fasteners
Stainless steel support plate
Fixings & instructions
Gap Requirement: 100mm gap behind stile required
Fitting the lock:
Drill 2 × 9mm holes at 140mm centres through the gate stile for fixing bolts.
Drill a 25mm hole for the latch arms, centrally between the two holes.
Slide the lock through from the back of the box section.
Fit the stainless steel support plate and secure with 2 × M8 countersunk screws.
Fitting the keep:
Mark where latch arms meet the post and drill a 25mm receiving hole.
Drill 2 × 15mm holes at 70mm centres above and below.
Fit the L-shaped keep plate using expanding fasteners – preventing latch bolt access from the outside.
Maintenance:
Lubricate latch arms with light oil every 6 months.
Annually dismantle lock and spray mechanism with light oil.
