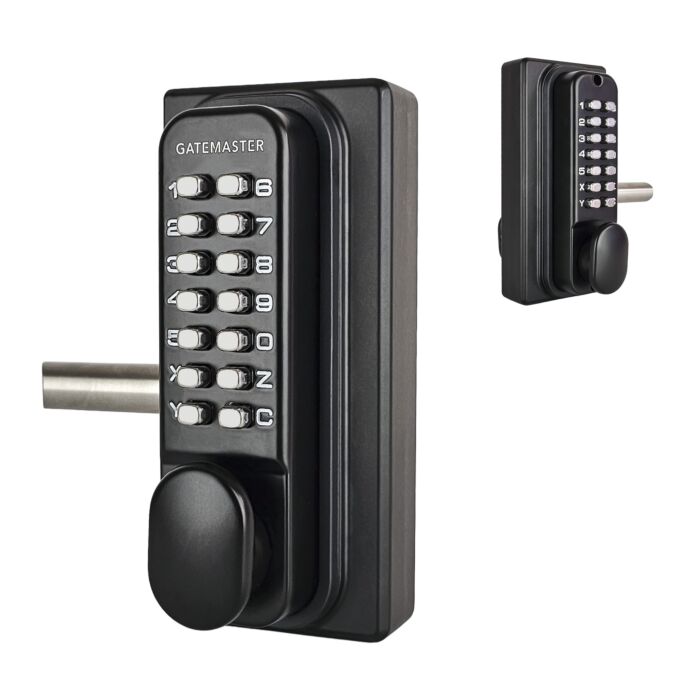

Superlock Double Sided Keypad Code Gate Lock
The Gatemaster Superlock 2.0 Double-Sided Keypad (BDG 2.0) provides secure access control from both sides of the gate, combining the convenience of a mechanical code lock with the proven reliability of the Superlock range.
Designed for simple installation, the slim 70mm lock case fits a wide range of gate styles. The auto-latching latch bolt projects deeply into the gate post for increased tolerance and strength, while the stainless steel bolt support plate with brass bearing ensures long-lasting durability.
Key Features & Benefits:
Double-sided digital keypad – secure access from both sides of the gate
No power required – fully mechanical keypads for simple installation
Slim 70mm lock case – adaptable to multiple gate designs
Auto-latching latch bolt – projects up to 20mm into post for added security
Durable support plate with brass bearing – ensures smooth action and long service life
Adjustable latch bolt – can be shortened or reversed for left/right hand gates
Weather resistant – built for outdoor use with anti-corrosion finish
Supplied with strike plate – for secure latching to gate post
The Superlock 2.0 Double-Sided Keypad is ideal for residential, commercial, and public access gates where dependable security and ease of use are essential.
Operation: Mechanical keypad lock – no electricity required
Keypads: Double-sided – keypad entry from both sides
Case Width: 70mm slim profile
Latch Bolt: Adjustable, 15–20mm projection
Latch Type: Auto-latching into strike plate
Reversible: Yes – left or right handed gates
Construction: Stainless steel latch bolt with brass bearing support
Finish: Anti-corrosion, outdoor rated
Included in Kit:
Double-sided keypad lock body
Stainless steel bolt support plate
Gate post strike plate
Fixings and hex key
Drill 2 × 9mm holes at 140mm centres for fixing bolts.
Drill an 18mm clearance hole for the latch bolt, 60mm above the bottom fixing hole.
Hold the lock against the gate box section and screw on the latch bolt through the larger hole.
Lock the latch bolt using the supplied hex key.
Secure the lock in place using the stainless steel bolt support plate and countersunk screws, ensuring the latch moves freely.
Fix the strike plate to the gate post by either welding or screw fixing.
Maintenance: Lubricate the latch bolt with light oil every 6 months. Annually, dismantle the lock and spray the mechanism with light oil.
