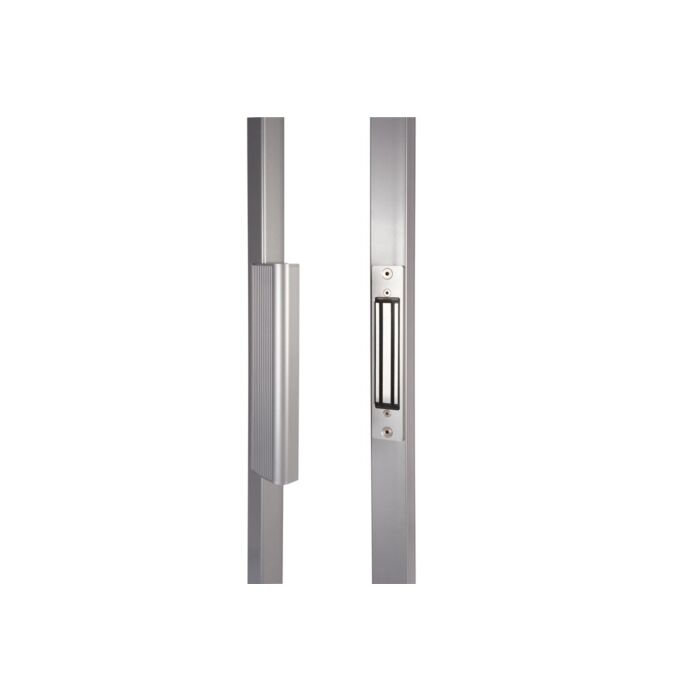

Locinox B-MAG Insert Magnet Lock for Swing Gates

The Locinox B-MAG Insert Magnetic Gate Lock is a modern alternative to bulky surface-mounted maglocks, designed specifically for external swing gates. By inserting directly into the gate post or profile, the B-MAG provides a slimline, aesthetic finish that maximises passage space while delivering reliable access control.

With a guaranteed holding force of 250kg (2500N), the B-MAG ensures strong and secure locking. Built for outdoor durability, it features a two-layer protective coating, IP68 rating, and has been salt spray tested for 500 hours (ISO 9227 certified). The integrated anti-residual magnetism kick-off system ensures smooth operation, while installation is simplified with the Locinox modular hole pattern.

Key Features & Benefits:

• Slimline insert design – maximises passage space and improves aesthetics
• Guaranteed 250kg holding force – tested on every lock
• 500h salt spray tested – SGS certified to ISO 9227
• Two-layer protective coating – developed for outdoor use
• IP68 rated – highly resistant to water and dust
• Anti-residual magnetism kick-off system – ensures reliable release
• Fail open system – safe in case of power loss
• Voltage: 12V/24V DC
• Current draw: 460 mA / 12V or 230 mA / 24V
• Available finishes: Silver (ZILV) or Black (RAL 9005)

The Locinox B-MAG is the ideal solution for those seeking a durable, weatherproof, and discreet magnetic lock for swing gates in residential, commercial, or industrial applications.
