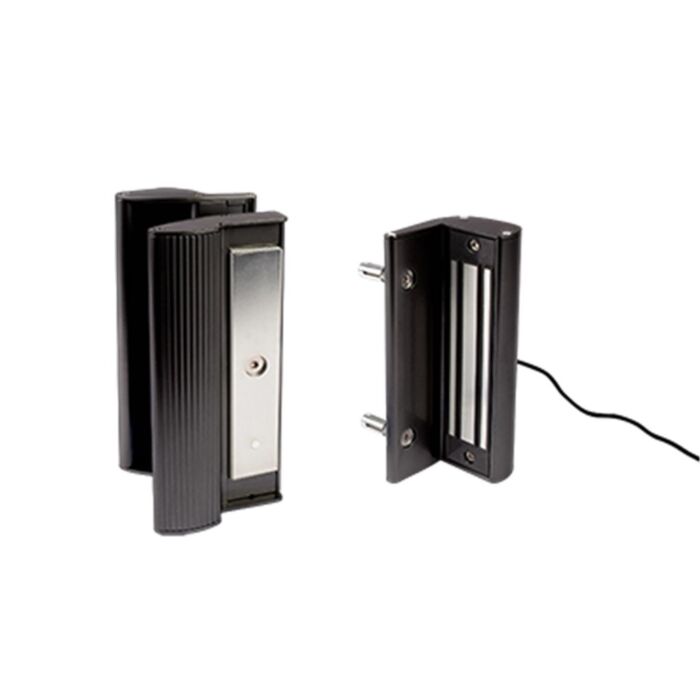

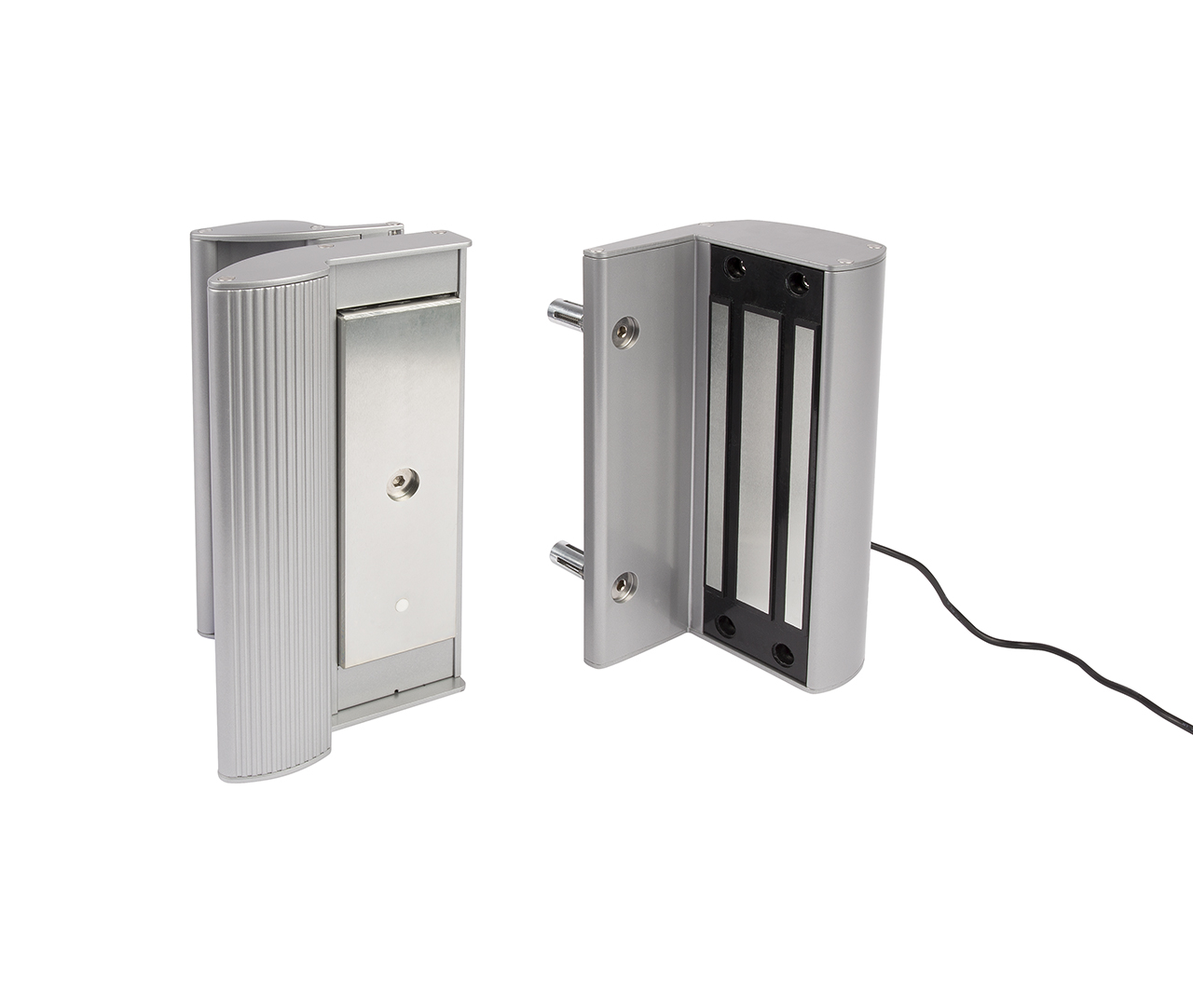

Locinox MAG Electro-magnetic lock with handles

Innovative electro-magnetic lock for access control. Available in 2 versions. MAG2500 with 250 kg and MAG5000 with 500 kg pulling force. The aluminium powdercoated housing with integrated design handles gives your access control gate that extra touch. Stop losing precious time with welding boxes; drilling 7 holes does the job. The Quick-Fix enables a fast and strong fixing. A two layer, protective coating guarantees that our electro-magnetic locks are ready for years of worry-free use outside.

• High holding force! Up to 500 kg
• 500h salt spray resistant! SGS certified.
• Tested according to ISO 9227
• Special two-layer protective coating developed for outdoor use
• Powdercoated aluminium casing
• Anti-residual magnetism kick-off system
• New anti-pry system: Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Integrated handles
• Fast and easy fixing by means of 7 holes with Quick-Fix
• Same center-distance as the standard Locinox keeps
• Fail open
• MAG2500: Minimal pulling force: 2500N (250 kg)
• MAG5000: Minimal pulling force: 5000N (500 kg)
• Voltage: 12V/24V DC
• Current MAG2500: 460 mA / 12 V or 230 mA / 24 V
• Current MAG5000: 460 mA /12 V or 230 mA / 24 V

Order codes

• MAG-2500 - For mounting on square posts and gate profiles of 40 mm to80 mm, 250
• MAG-5000 - For mounting on square posts and gate profiles of 40 mm to 80 mm, 500 kg pulling force
