Locinox Sixtylock Insert Lock Kit

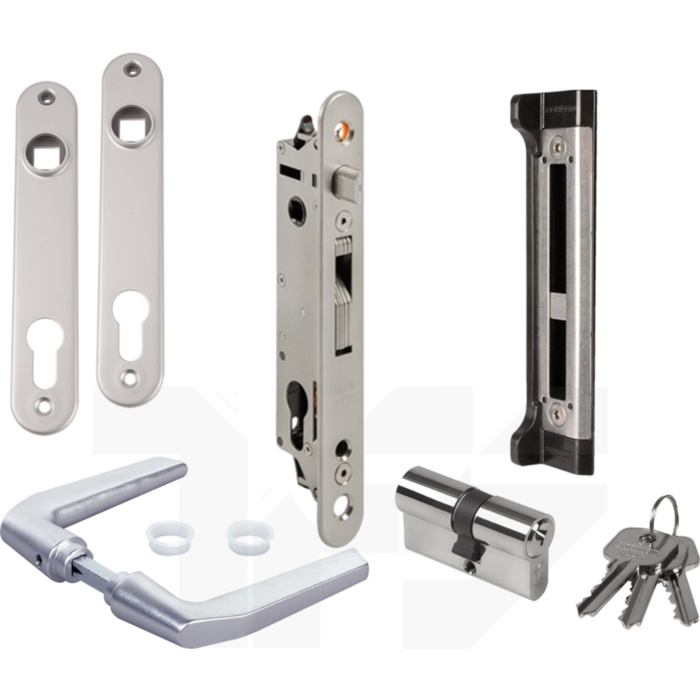

The Sixtylock insert lock kit is a complete locking kit for steel box sections of 60mm with a 40mm backset. With a choice of finish you can choose the kit that best suites your gate. Each kit comes complete with the Locinox sixtylock, a pair of cover plates, a choice of 60mm, 70mm or 80mm cylinder, a pair of handles and the SFKM keep.

• Stainless steel lock mechanism with cover plate against dirt penetration
• Mechanism, hook, frontplate, latchbolt: stainless steel
• Backset 40 mm, for mounting in profiles of 60 mm of depth or more
• Continuous adjustment of the daybolt up to 10 mm without dismounting the lock
• Key-operated self-latching bolt
• Easy left or right changing of the self-latching daybolt
• Throw of the hook: 21 mm
• The center distance between the cylinder and the handle: 92 mm
• Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
