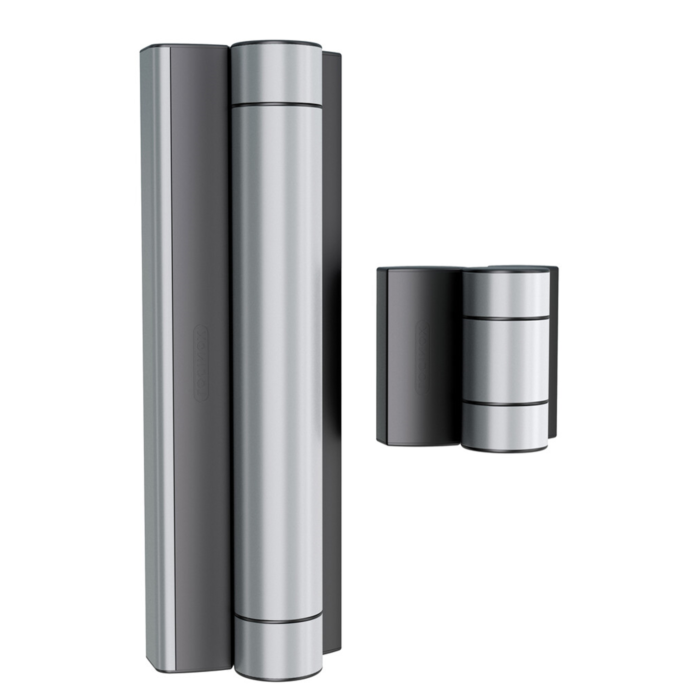

Locinox Magnus - Motorised Gate Closer and Hinge for Pedestrian Gates
MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box. For gates up to 200kg and 1.5m wide.
MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.
- For gates up to 1.5m wide and 200kg
- 100 Nm torque
- Fits on post profiles from 60 mm and gate profiles from 40 mm
- Fast and easy fixing with Quick-Fix
- ETL-tested
- Input main power supply: 110 AC to 240V AC
- Motor voltage: 24V DC
- External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use - to be combined with a lock
- 2m cable between motor and connection module
- Compact and vandal-proof design
- Configuration via app
- Tested up to 500.000 cycles
- EN 16005 Compliant
