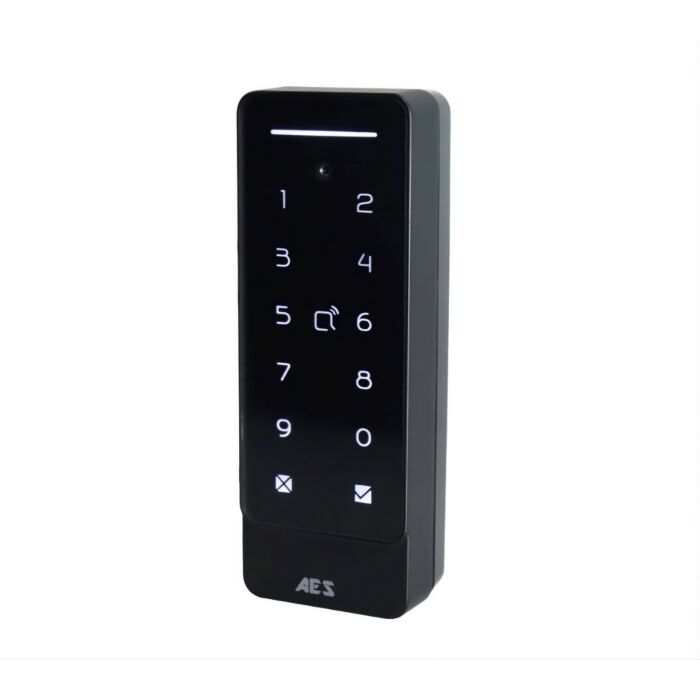

Opyn Keypad
Benefit from some great savings on our products by becoming a trade customer
Apply For A Trade AccountAccess your way.
Give users multiple convenient methods of entry from a single secure access control device.
• PIN CODE
Simple keypad access using secure PIN credentials.
• QR CODE
Generate QR credentials with configurable time and usage limits.
• RDID / NFC
Compatible with MIFARE 13.56MHz credentials for fast, convenient entry.
• BLE ACCESS
Wireless access using compatible mobile and Opyn functionality.
Cloud-Based Management
Fully integrate the Opyn Keypad with the Opyn cloud portal and mobile app for convenient remote system management.
| Remote User Management Add and manage users from anywhere. | System Monitoring Review system logs and access activity remotely. |
| Remote Configuration Adjust keypad settings without visiting site. | Over-The-Air Updates Keep firmware updated remotely. |
Standalone Operation
No network connection? No problem. The keypad can operate independently in Standalone Mode for simple and reliable access.
| Network-Free Operation Operate without an internet or cloud connection. | Local Configuration Configure the keypad directly on site. | Simple Installation Ideal for straightforward standalone applications. |
Advanced QR & Credential Control
Create secure temporary or permanent credentials with configurable time and usage limits.
| 10,000 Records Support for up to 10,000 QR or credential records. | Visitor Access Create temporary credentials for guests and visitors. |
| Contractor Access Perfect for deliveries, contractors and scheduled access. | Managed Properties Ideal for rentals and multi-user properties. |
Built for Outdoor Use
Designed for dependable operation in demanding outdoor environments and exposed installations.
| IP65 Rated Protection against dust and water ingress. | IK08 Resistance Designed to withstand physical impact and vandalism. |
| Wide Temperature Range Reliable operation from -30°C to +65°C. | Tamper Protection Built-in tamper alarm for added security. |
AES OPYN APP
The new AES OPYN Keypad puts access control directly in your hands. Using the OPYN app, users can quickly manage access, create and update PIN codes, control permissions and keep everything organised from one simple, intuitive interface.
Designed to make installation and everyday management easier, OPYN gives you a smarter, more flexible way to control who has access all from your phone.
Specifications
| Material | Aluminium + Toughened Glass | Dimensions | 139 × 50 × 27 mm |
| Colour | Black | IP Rating | IP65 |
| Impact Rating | IK08 | Operating Temperature | -30°C to +65°C |
| User Capacity | Up to 100,000 users | QR Codes | Up to 10,000 with time / usage limits |
| Access Methods | PIN, QR, RFID/NFC, BLE | RFID | MIFARE 13.56MHz |
| Camera | 2MP pinhole for QR code reading | Scheduling | Up to 6 daily plans |
| Logs | 30 days | Cloud Control | Remote management via cloud portal |
| Interfaces | RJ45, Wiegand, NO / COM / NC | Relay | 1 Relay |
| Mounting | Surface mount | Firmware | OTA or local update |
| Operation Modes | Cloud or Standalone | ||
| Ship Bundle Items | Together |
|---|
