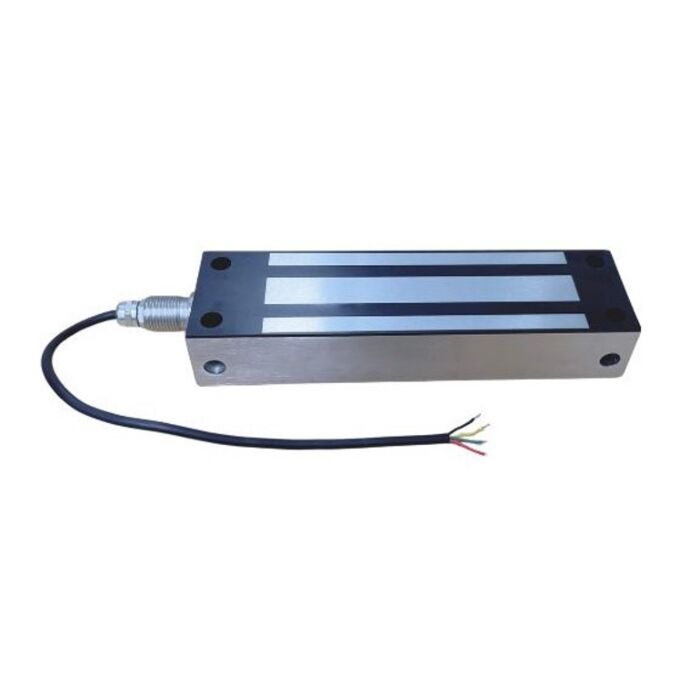

TFS Weatherproof Mag Lock - 545kg Holding Force
Designed for outdoor access control applications, this weatherproof stainless steel electromagnetic lock is suitable for gates, external doors and other exposed installations. It features a corrosion-resistant stainless steel housing, a 20mm conduit connection, dual 12Vdc/24Vdc operation, lock monitoring contacts, and a holding force of up to 545kg (1200lb). The fail-safe design unlocks when power is removed, making it suitable for integration with a wide range of access control systems.
Benefit from some great savings on our products by becoming a trade customer
Apply For A Trade AccountWeatherproof Stainless Steel Electromagnetic Lock for External Applications
This weatherproof stainless steel electromagnetic lock is designed for external access control installations where resistance to the elements is required. Its stainless steel construction and integrated 20mm male conduit fitting make it suitable for outdoor environments such as gates, perimeter entrances and external doors.
The lock operates on either 12Vdc or 24Vdc, providing flexibility for new installations and system upgrades. A fail-safe operating mode means the lock releases when power is removed, making it suitable for applications that require emergency egress in accordance with system design requirements.
An integrated lock monitoring output provides SPDT status contacts for connection to access control or building management systems, while the anti-residual magnetism feature helps ensure reliable door release after power is removed. The lock can be installed using either side or face fixing options to suit different mounting configurations.
Features
- Weatherproof stainless steel housing for external installations
- Suitable for gates, external doors and perimeter access points
- Dual voltage operation (12Vdc or 24Vdc)
- Up to 545kg (1200lb) holding force
- Integrated lock monitoring contacts (SPDT)
- Anti-residual magnetism feature
- Fail-safe operation (power to lock)
- Side and face fixing options
- 20mm male conduit connection for protected cable entry
Technical Specifications
- Holding force: Up to 545kg (1200lb)
- Operating voltage: 12Vdc or 24Vdc
- Current consumption:
- 500mA @ 12Vdc
- 250mA @ 24Vdc
- Armature plate dimensions: 185mm (L) × 62mm (W) × 16mm (D)
- Weight: Approximately 2.48kg
- Operating temperature: -10°C to +55°C
- Monitoring contacts: SPDT, rated 0.25A @ 12Vdc
- Conduit fitting: 20mm male
This electromagnetic lock is suitable for integration into access control systems requiring a weather-resistant, monitored magnetic locking solution for external installations.
