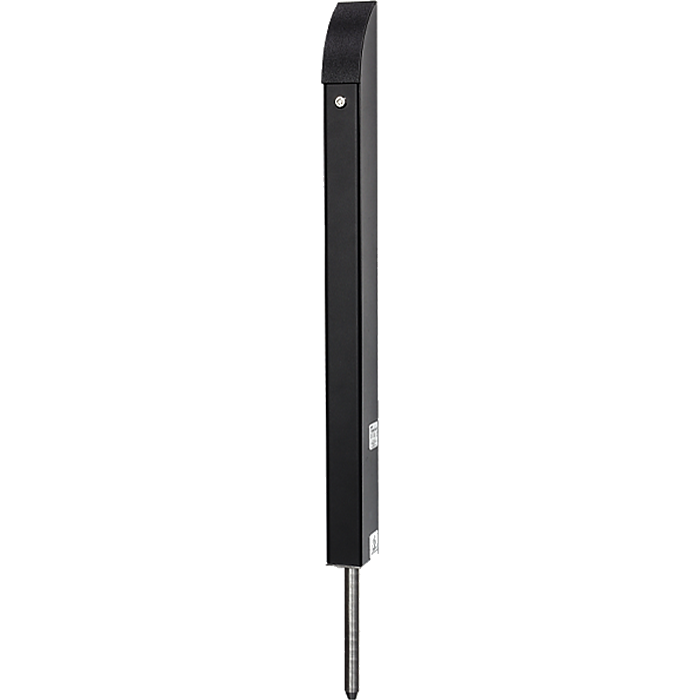

Tomalok Electric Drop Bolt in Black (24v Power Supply)

This versatile electric gate lock is offered in three stylish variations to cater to different preferences: classic black, anthracite grey, modern stainless steel, and stainless steel with a sleek black door and cap. Whether you prefer a timeless or contemporary aesthetic, or a fusion of both, this electric gate lock accommodates individual tastes. The black variant exudes elegance, the stainless steel option offers a sleek and modern appearance, and the stainless steel with a black cap provides a sophisticated blend of styles. With these diverse choices, you can select the ideal finish to seamlessly integrate this electric gate lock into your security system while complementing your style.

Power cable: 4 core 5 metres included.

Pin: 150mm Stroke - 20mm diameter stainless steel pin.

Stainless steel: Marine grade stainless steel BS316 (powder coated).

Battery backup time: Rechargeable lithium battery provides up to 4 days of standby and 10-20 operations.

Power: 24v dc.

Overcurrent trip: Auto stop on ground or limit detection via overcurrent sensing technology.

Current:
Standby 140mA.
Peak Draw 280mA.
Operation 210mA.

Trigger method: No relay needed between gate controller and lock. Connect direct to either flashing beacon output, or courtesy light output.

Lifting force 30N.

Min recommended gate profile: 50mm box.

Unit weight: 4.5kg

Accessories included: Power supply, protective flexi cable, jack nut fixing tool, keys.
