Trident 7.5

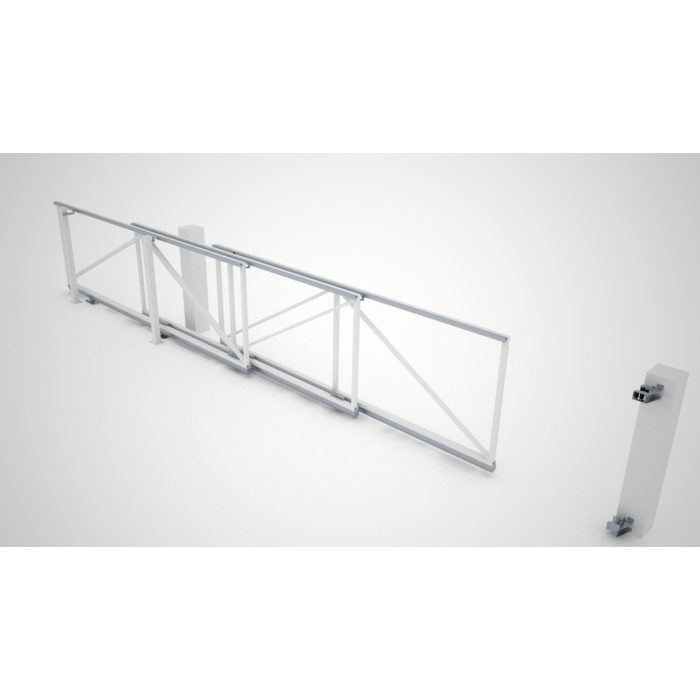

The CAIS Trident 7.5 is a triple-telescopic cantilever hardware kit. Traditional sliding gates require enough clear back space for the gate leaf to slide into, however, the Trident kit is used when this space isn't available. Installing a triple-telescopic cantilever gate rather than a traditional sliding or cantilever gate, can reduce the necessary backspace required by up to 47%. The kit is split into three overlapping sections that close alongside the other section, reducing the back space required. As this is a cantilever system, it will not require any track laid in the driveway entrance.

The Trident operates by using a integrated system of fourteen-wheel carriages, dedicated triple tracks and a series of cables that control the opening and closing of the second and third leaf. As the back gate opens, the wire pulls the middle and front gate panel along three times as much as the back, so it travels at triple the speed. The same occurs with the second and third half of the wire when closing.
